Auto Leveling Sensor
General:
ALT’s leveling sensor uses hall-effect technology, is a non-contact type of advanced design, providing longer life, higher accuracy, and a solid mechanical body. This is not only used for Adapted Front Lighting Systems (AFS), but can also be applied to related body control systems, such as, vehicle stability systems and active suspension systems.
Technical Parameters:
| Items | Sepcifications |
| Operating temperature range | - 40°C to + 125°C |
| Storage temperature range | -55°C to + 150°C |
| Operating voltage range | 9~16V |
| Angular Resolution (function of frequency) | 0.05 degree |
| Relative linearity | < ±1% |
| Nominal Duty Range (90 deg) | 5%~95% |
| Mechanical Movement | 360 degree |
| Output Range | 90 degree |
| Life cycle | 5,000,000 cycles min |

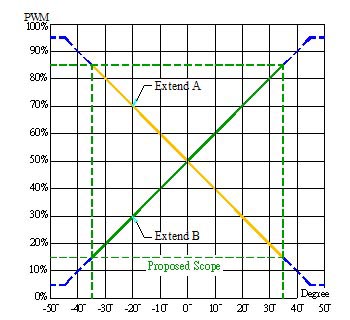

Characteristic Curve:

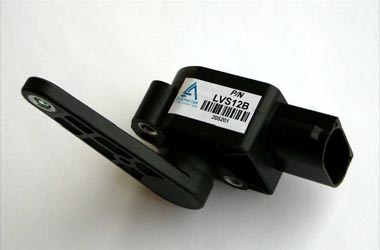

Product Image:
