Engine fuel nozzle temperature pressure sensor
General:
Engine fuel nozzle temperature and pressure sensors mainly to measure the pressure and temperature changes of the mainfold, and pass the real-time signal to the engine ECU, to ensure the most appropriate power output.
Technical Parameters:
| Pressure Range | |
| Operating | 0 kPa to 300 kPa |
| Maximum | 500 kPa |
| Full scale accuracy | ± 3.0% |
| Temperature Range | |
| Operating | -50°C to +120°C |
| Measurement accuracy | ± 5.0% at operating temperature |
| Storage | -50°C to +150°C |
| Electrical Characteristics | |
| Supply voltage | 6.0 V DC |
| Supply current | < 10 mA DC |
| Output voltage | 0 to 4.5 V DC |

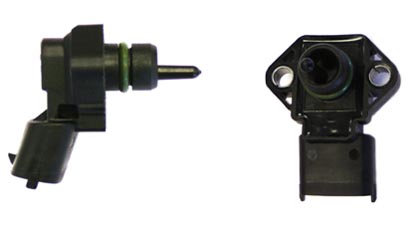

Product Image:
