Auto Angular Sensor
General:
ALT’s steering angle sensor provides long lifetime and high-accuracy measurements, can detect 360-degree absolute position and detects the turns of the sensor, not only for the Adaptive Front Lighting systems (AFS), but also can be used in any swivel signal needed system, such as vehicle stability systems and electric power steering.
Technical Parameters:
| Items | Performance |
| Angular Position: | |
| • Range | -900° to 900° (Max. -1080° to +1080°) |
| • Resolution | 0.25° |
| • Accuracy | ± 1 % duty |
| Power Supply Voltage | |
| • Rated voltage | DC 12V |
| • Range of operation voltage | DC 8V to 16V |
| Temperature Resistance | |
| • Operation | –40 to 85℃ |
| • Storage | –40 to 95℃ |
| Life Cycle | 1,000,000 cycle (min) |
Characteristic Curve:

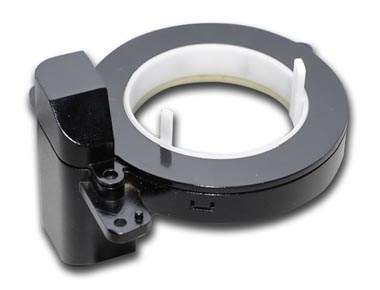

Product Image:
