Pedal sensor

General:

The main function of the pedal sensor is to detect the pedal angle changes and send the real-time signal to the engine ECU and to provide the corresponding power output.

The most difficult piece of the pedal sensor is the high sensor precision, high-life requirements and fail-safe mechanism. ALT’s pedal sensor uses non-contact sensor technology; and successfully achieves these high standards.



Technical Parameters:

Item Specs
Operating temperature range - 40℃ to + 85 ℃
Storage temperature range - 40℃ to + 105 ℃
Typical Voltage 5V DC
Rotation Angle 10°~25°
Relative linearity  < ±1%
Overload >1100N (break)
Life cycle 15,000,000 cycles

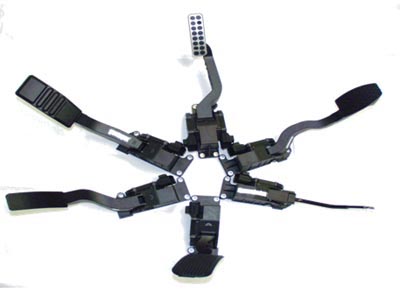

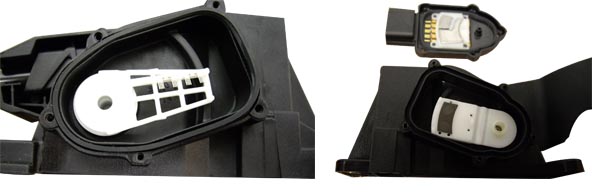

Product Image:



Applications:
